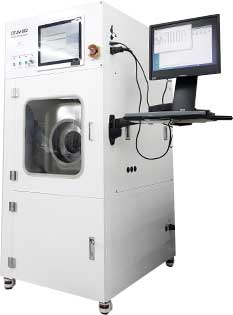

Auto Tumblers Particle House T Series
Particle Testing System Particle House T Series
| Model name | functions |
|---|---|
| T800 | Basic type (specific for inspection of the laundry of dust-proof clothes), Level 1 and automatic reporting (Text) |
| T801 | Function of T800 + Level 2 sensitivity |
| T802 | Function of T801 + automatic control of particle counter + automatic reporting (Excel, automatic conversion and graph) |
| T800 Shoe | Specific for the dust-proof shoes |
| T1200 | Level 4 sensitivity, automatic control of particle counter, automatic reporting (Excel), automatic conversion |
Features/Benefits
- High performance testing device with full automation
- Realization of making the background particle level close to zero
- Even 1 small sample such as disposal mask or wiper can be tested so that the expenses for testing can be significantly reduced
- The rapid cleaning of chamber is possible due to introduction of computer controlled cleaning mode
- As it has three holes for fixing the sample particles, the various devices can be connected at the same time.
- Patented unique structure is adopted (the patent registration is completed in Aug. 2010).
- Conditions of use: High level clean room with Class 100 or higher
- Lowered background level compared to our existing series
- The testing of more voluminous sample than our existing series is possible
- Error arising from the folding of sample caused by the rotation of drums in opposite directions is minimized.
Applications
- Overall quality control for cleaning products and materials for clean room
- Evaluation of particle contamination on the materials, consumables and process consumables for clean room / Incoming inspection / quality certification /
product development / process control
Specifications (See the separate page for details on specification)
- Dimension : Main Body :800mm (w) x 1150 mm(d) x 1800 mm(h) 350kg
- Power : 220 v (50 Hz, 60 Hz) 15 A ( ??¨ì?? )
- Gas : N2 or Compressed Air ( > 0.4 Mpa )
- Drum : 10 ~ 60 rpm ( Max 100) / Bidirectional ( CW and CCW )
| T 800 | T 801 | T 802 | T 1200 | |
|---|---|---|---|---|
| Automation | Full Auto | Full Auto | Full Auto/High Performance | |
| Testing Type | Tumbling | |||
| Particle Counter Control | RS232, Ethernet | RS232, Ethernet | RS232, RS485, Ethernet | RS232, RS485, Ethernet |
| Sensitivity Mode | 1 Mode | 2 Mode | 2 Mode | 4 Mode Auto(High, Medium, Standard, Low) |
| Reporting | Reporting / Saving Text File Report | Reporting / Auto Calculation Excel File Report | ||
| Body | 1 Body | |||
| Chamber Air Auto Control | None | 1 Flow Control Unit | 1 Flow Control Unit | 2 Flow Control Unit |
| Air Sampling Unit | None | Included(1Point), 3Point(Option) | ||
| Cleaning Mode | STD Mode | Standard + Quick Clean Mode | ||
| No. of Control Recipes | Unlimited | |||
| Control Software | TOS V1 | TOS V1 | TOS V2 | TOS V3(Trend DB ??’??) |
| Dual Monitor | Option | 1 Main(Touch), 1LCD(nON tOUCH) | ||
| Key Board | Keyboard(Ball Mouse Included)+Arm | Keyboard+Pad Mouse | ||
| Sampling Outlets | 3 Outlets | |||
| Nozzle Jet Testing | N/A | 1 Nozzle | ||
| LAN / Network | Ethernet 1000 MBPS | |||
| Drum Speed | 20~60 rpm(max 100 rpm), (Otum 800-Shoe: 10~30 rpm) | |||
| Drum Spin. Direction | Bidirectional(CW, CCW) | |||
| Communication | (PC to Body: RS 232C) | |||
| Power | 208~220v / 15A / Single Phase (50~60 Hz) | |||
| FFU | ULPA Filter, 15 CMM(Max) | |||
| Max. Sample Weight | 1Kg, 2kg(Otum800-shoe) | |||
| Computer | 15 inch Touch Panel PC 30 GB SSD Dual Core 1 Ghz 1GB Memory |
3 Serials 1 RGB Video Port 2 Ethernet Ports 4 USB Ports |
||
